Challenger Chain Blocks

Description

Challenger Chain Blocks feature better quality in a new compact design. The extensive range is suitable for many applications in the mining, construction, industrial and automotive industry. These chain blocks have it all; better quality, easy to use, improved safety and all of this with reduced cost.

PRODUCT FEATURES

  • All Challenger models are manufactured to comply with AS1418.2.
  • High strength end stop with secondary end anchor for increased safety.
  • “T” type hooks for improved load holding integrity.
  • Gear system design for reduced effort when lifting loads.
  • Includes a specially designed hand wheel to eliminate hand chain slippage and pocket wear.
  • Encapsulated needle bearings and side plate bearings for smoother operation.
  • Key internal components are CNC machined before being heat-treated and toughened.
  • No aluminum content which ensures suitability for mining applications.
  • Overall better design and improved finish to prolong life expectancy.

SPECIFICATIONS & DIMENSIONS

Specifications: CHALLENGER CHAIN BLOCK

CAPACITY500 KG1 TONNE2 TONNE3 TONNE5 TONNE
Stock codeCCB103CCB106CCB113CCB116CCB123CCB126CCB133CCB136CCB153CCB156
Lift Height (m)3636363636
Test Load (kg)7501500300045007500
Effort to lift full load (N)210285355340400
No. of Falls11122
Hand Chain (mm x mm)¯5 x 23.7
Hand Chain Drop (m)2525252525
Load Chain (mm x mm)¯5 x 15¯6.3 x 19¯8 x 24¯7.1 x 21¯9 x 27
Net Weight for 3m lift (kg)9101216202523293950

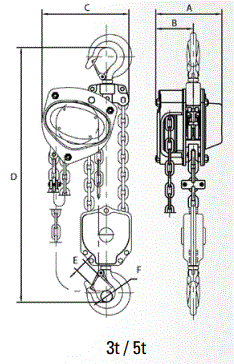

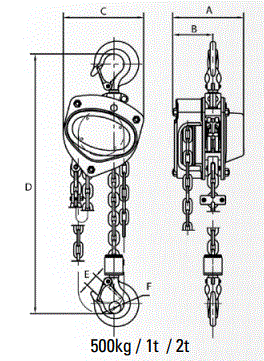

Dimensions: CHALLENGER CHAIN BLOCK

MODEL500KG1 TONNE2 TONNE3 TONNE5 TONNE
A128142175158183
B7576888090
C130150185220225
D280330385510615
E2226353743
F¯20¯25¯33¯36¯43
Dimensions CHALLENGER CHAIN BLOCK
