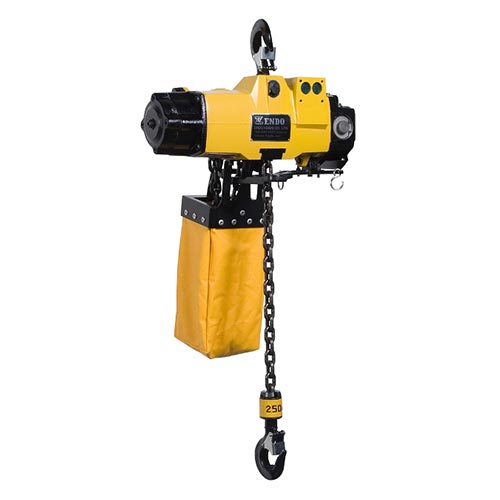

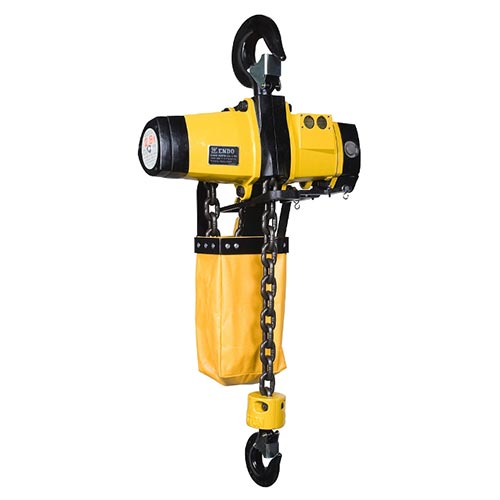

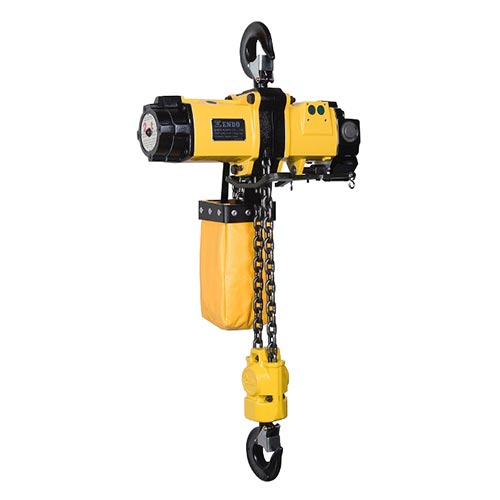

EHL Series Chain Air Hoist

Capacity: 125kg – 6 tonne


EHL Air Hoists from Endo Kogyo are fitted with rotary vane motors in strong lightweight aluminium bodies, for easy handling in a variety of industrial and construction applications.
Variable speed models available in either cord or pendant controls with optional lift heights.

  • Compact and lightweight ensures ease of handling.
  • Operation speed depends on the amount of pressure applied to the push buttons or how hard the control rope is pulled.
  • Installation – simply connect the air hose.
  • Precise variable lifting and high speed.
  • Quality load chain allowing high frequency of use.
  • Upper and lower limit switches.

Applications: Mining, construction, engineering, offshore.

Australian Standard: AS 1418.2

CapacityPart No.Part No.ModelLift Speed Load Chain Headroom Weight Load Chain Load Chain
3 metre (Pendant)3 metre (Pull Cord)(m/min)Dia (mm) xFall(mm)(kg)Dia (mm) x PitchPart No.

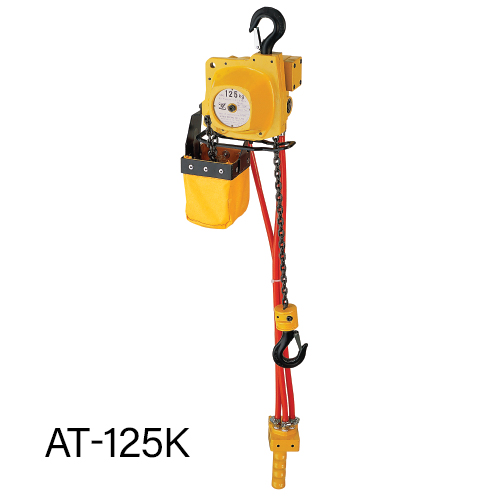

125kg44519N/AAT125K14.54.0 x 179012.54 x 1248351
500kg4925149250EHL05TS10.56.3 x 1365196.3 x 1943206
1 tonne4925349252EHL1TW5.26.3 x 2440256.3 x 1943206
1 tonne6353848237EHL1TS67.1 x 1480347.1 x 2146745
2 tonne4823848239EHL2TW37.1 x 2540427.1 x 2146745
3 tonne4418144998EHL3TS312.5 X 15857512.5 X 3846752
6 tonne4760945000EHL6TW1.512.5 x 27709612.5 x 3846752
