FST200 Slip-on Tow Jib

Description

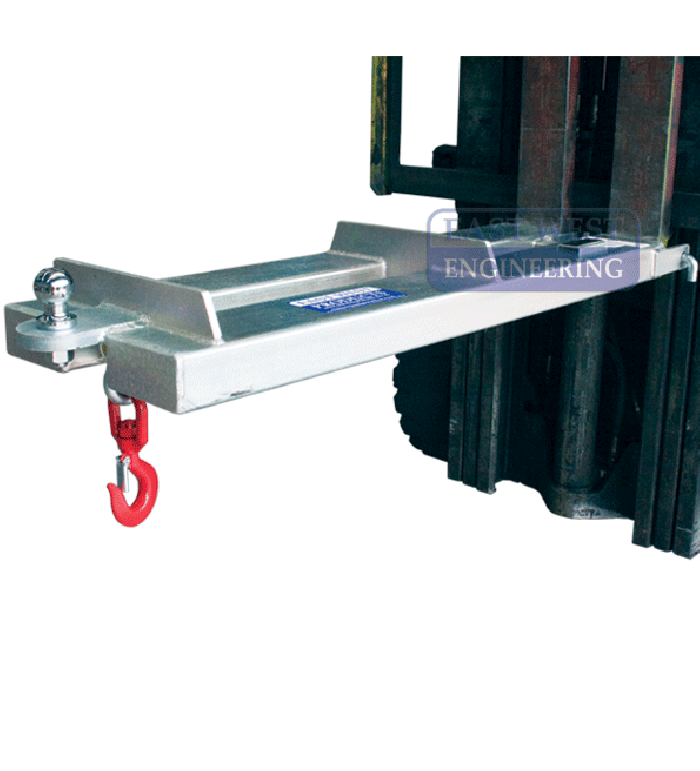

Designed for versatility, the FST200 Slip-on Tow Jib is a dual purpose, easy to use forklift attachment that allows both towing and general lifting functionality.

FEATURES:
• 2000kg capacity lifting jib with 2 hook positions 585mm apart
• 50mm tow ball for towing loads up to 500kg
• Supplied with a 2T safety swivel hook and shackle
• Slip-on attachment and fork locking pins allow quick connection to a forklift
• Lightweight and simple to use
• Zinc finish



SPECIFICATIONS:

Working Load Limit (WLL)     2000kg
 Max. Trailer Weight 500kg
 Load Centre 1160mm
 Unit Weight 45kg
 Fork Pocket Size 140 x 65mm



Towing of trailers by a forklift fitted with a tow jib can impose overturning forces on the forklift and additional force on the mast and braking system.The load being towed must be no greater than 25% of the mass of the forklift. Towing should be carried out in a slow, smooth and controlled manner and on level ground. Sharp turning must be avoided at all time to prevent jack-knifing of the trailer.
