Hitachi Electric Chain Hoists

Description

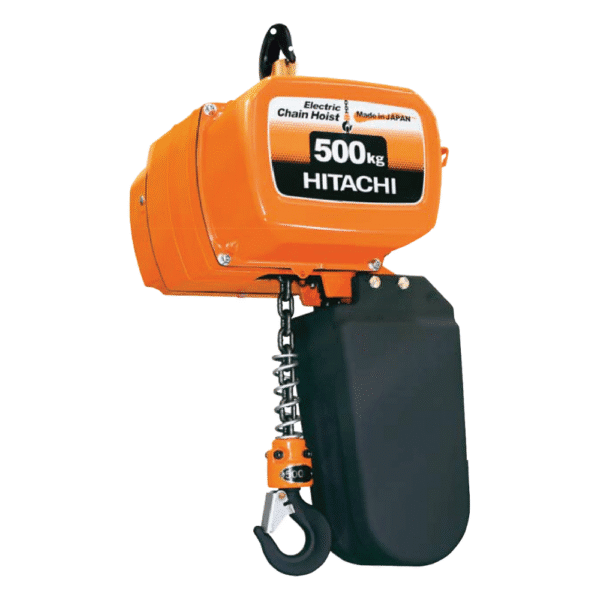

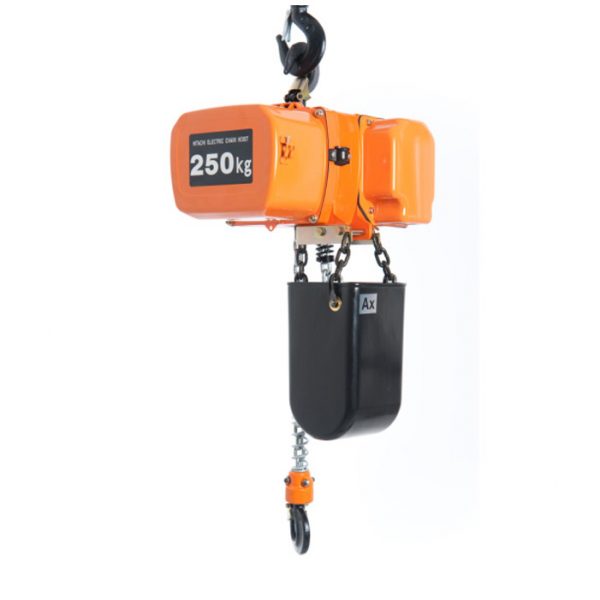

Hitachi’s reputation for excellence in design, quality, reliability and performance has made this brand a global market leader. With over three decades of proven reliability throughout Australasia and an extensive operating range, Hitachi Electric Chain Hoists are suited to most applications. The Hitachi models vary from 250kg to 15 tonne capacity and are available in three or single phase, two speed or single speed while being tested to the Australian standards.

PRODUCT FEATURES

  • All Hitachi models are manufactured to comply with AS1418.2.
  • Operation: fully contactorised with high rated contactors and pendant controls; both fitted with mechanical interlocks and 24 Volt control. Optional IP65 pendant including E-Stop available.
  • Safety Limits: full current and shunt limit switches operate in both directions of hook travel.
  • Overload Limiter: this electro-mechanical device is exclusive to the Hitachi range and boasts a far more superior overload protection device than the slipping clutch method.
  • Available on all Hitachi models.
  • Braking: all models are fitted with an electro-magnetic, self-adjusting disc type brake to the gearbox and the ‘F’ models have an additional auxiliary centrifugal brake fitted to the motor.
  • Completely enclosed design. Entire mechanism including; the motor, dual brake system, gears, rotating parts and electrical system can be operated under severe conditions.
  • Chain Bucket: noiseless design with flexible mounting.
  • High quality Grade 80 zinc or nickel plated load chain supplied as standard.
  • IP54 protection rating on all electric hoists and trolleys.
  • Motor thermal protection on all Hitachi models.
  • Optional radio remote control.
  • Ambient temperature requirement of -10 to 40 degrees.
  • Class M4 inclusive of 180 starts per hour.
  • Reverse phase protection relay on all models excluding; 250kg, 500kg and all single phase models.
  • Special low headroom hoist and trolley arrangements available to suit tight headroom applications.
  • Electric trolleys are fitted with Guide Rollers as standard to reduce wear and ensure suitability for curved beam applications.

SPECIFICATIONS & DIMENSIONS

Specifications: THREE PHASE / SINGLE SPEED HOISTS 415 volt, 50Hz

Model_S_S1S2S1F2F3F5F
Stock CodeHEH010HEH050HEH100HEH200HEH110HEH210HEH300HEH500
Rated Capacity (kg)250500100020001000200030005000
Speed (m/min)107.24.62.37.16.84.12.8
Motor (kW)0.450.630.80.81.32.42.42.4
Weight (kg)28313749428099121
Headroom (mm)4504505306455356608201020

Specifications: THREE PHASE / TWO SPEED HOISTS 415 volt, 50Hz

Model_SN_SN1SN2SN2FN3FN5FN
Stock CodeHEH020HEH060HEH120HEH220HEH230HEH330HEH530
Rated Capacity (kg)25050010002000200030005000
Speed (m/min)7.2 / 1.87.2 / 1.84.6 / 1.22.3 / 0.66.8 / 1.74.0 / 1.02.8 / 0.7
Motor (kW)0.32 / 0.080.63 / 0.160.8 / 0.20.8 / 0.22.4 / 0.62.4 / 0.62.4 / 0.6
Weight (kg)3336425496112146
Headroom (mm)4504505306456608201020

Specifications: SINGLE PHASE / SINGLE SPEED HOISTS 240 volt, 50Hz

Model_S1_S11S12S1
Stock CodeHEH900HEH907HEH911HEH920
Rated Capacity (kg)25050010002000
Speed (m/min)53.62.31.1
Motor (kW)0.250.320.40.4
Weight (kg)34343951
Headroom (mm)450450530645

Specifications: THREE PHASE / ELECTRIC TROLLEYS 415 volt, 50Hz *larger girder widths are available upon request.

Model1ET2ET3ET5ET
Stock CodeHET100HET200HET300HET500
Rated Capacity (kg)1000200030005000
ET Speed (m/min)Single SpeedSingle SpeedET 10.5 or 21.0ET 10.5 or 21.0
ETN Speed (m/min)Two SpeedTwo SpeedETN 21.0 / 5.3ETN 21.0 / 5.3
Motor (kW)0.140.140.30.3
Weight (kg)38526086
Min. Radius (m)1.51.823
Girder Width (mm) *75 Ð 125100 - 150100 - 150125 - 175

Dimensions: HITACHI ET-SERIES TROLLEYS (in mm)

HITACHI ET-SERIES TROLLEYS

Model1ET2ET3ET5ET
B1185210210240
B2190210210240
D64757590
d27323746
F303313316323
H226245265322
K126130140177
T65808090
U554037.554
V159172175181
L182200203219
W120148148173
E133169168202

Dimensions: HITACHI F-SERIES HOISTS (in mm)
Hitachi-F-Series-Dimensions

Model1F2F2FN3F3FN5F5FN
Z53566066082082010201020
A250280280280280280280
B250280330280330280330
C135175175120120145145
D170170170245245330330
E6808458451090109012951295
G23262642424848

Hitachi-S-Series-Dimensions

Model_S_SN_S_SN1S1SN2S2SN_S1_S11S12S1
Z450450450450530530645645450450530645
A181183181183216216216216181181246246
B184210184210216246216246210210246246
C125125125125135135909012512513590
D165185165185170170215215165165170215
E620620620620680680705705620620680705
G191919192323262619192326
