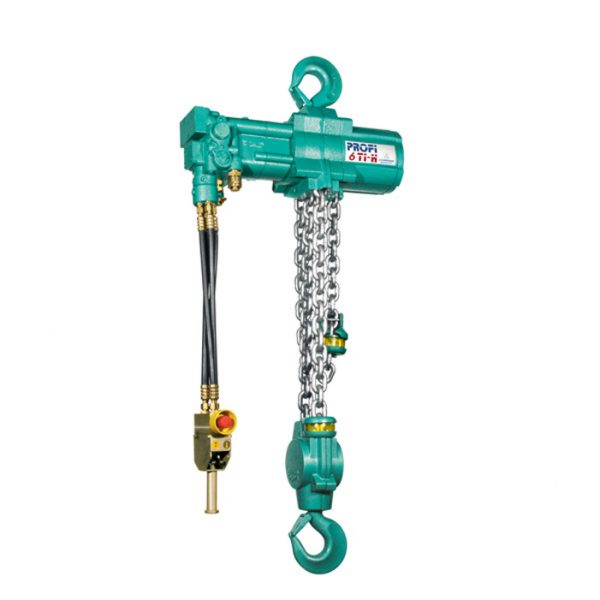

Description

The JDN Hydraulic PROFI and Monorail Hoists can be deployed as an alternative to air driven units in all situations where hydraulic lines, central hydraulic systems or hydraulic power supplies exist. The carrying capacities vary from 3 tonne up to 100 tonne and depending on the motor size; these hoists work with an intake pressure of 100 bar up to 180 bar.

PRODUCT FEATURES

  • Manufactured in Germany, under strict quality control with demanding tolerances.
  • All JDN models are manufactured to comply with AS1418.2.
  • Ideal for applications in explosion risk areas.
  • Sensitive, infinitely variable speed control of lifting / lowering and travelling motions.
  • Extremely low noise emissions.
  • Fully enclosed highly robust gear motor.
  • Integrated overload protection.
  • Only two supply connections at hoist ‘P’ and ‘T’, leakage oil drained internally.
  • Controlled load-lowering up to 20 tonne carrying capacities in the event of oil supply failure.

SPECIFICATIONS & DIMENSIONS

Specifications: HYDRAULIC PROFI HOISTS * Hydraulic PROFI range available up to 100 tonne.

Model3 TI-H6 TI-H10 TI-H16 TI-H20 TI-H
Weight with standard lift height (kg)90114160224289
Weight of chain (kg/m)3.83.85.85.85.8
Stock Code-----
Standard Lift (m)33333
Rated Capacity (tonne)3.26.3101620
No. of chain strands12234
Motor TypeKM 1/16KM 1/16KM 1/16KM 1/16KM 1/16
Motor Power (kW)3.53.53.53.53.5
Lowering speed at full load (m/min)4.52.32.11.51
Lifting speed at full load (m/min)421.71.10.8
Length of control as standard lift (m)22222
Intake Volume (l/min)4848484848
Intake Pressure (bar)130130130130130
Chain Dimension (mm)13 x 3613 x 3616 x 4516 x 4516 x 45

Specifications: HYDRAULIC MONORAIL HOISTS

ModelEH 20-HEH 25-HEH 37-HEH 50-HEH 75-HEH 100-H
Stock CodeJDN810--JDN850--
Rated Capacity (tonne)202537.55075100
No. of chain strands423434
Motor Type Ð TrolleyKM 1/16KM 1/16KM 1/16KM 1/16KM 1/16KM 1/16
Motor Type Ð HoistKM 1/8 Ð KM 1/16KM 2/32KM 2/32KM 2/32KM 2/32KM 2/32
Motor Output Ð Trolley (kW)0.71.41.41.42.82.8
Motor Output Ð Hoist (kW)3.56661010
Intake Pressure (bar)160 / 100150150150180180
Lifting speed at full load (m/min)0.81.10.70.50.70.55
Lowering speed at full load (m/min)0.91.20.80.60.80.6
Travelling Speed121212121212
ConnectionG_G_G_G_G_G_
Hose DimensionDN 12DN 16DN 16DN 16DN 16DN 16
Weight with standard lift height (kg)72010501550188041005800
Chain Dimension (mm)16 x 4523.5 x 6623.5 x 6623.5 x 6632 x 9032 x 90
Weight of chain (kg/m)5.812.212.212.221.321.3
Standard Lift (m)333333

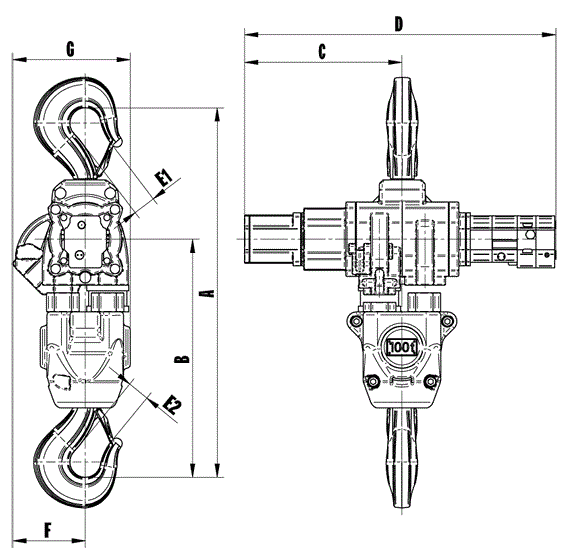

Dimensions: HYDRAULIC PROFI HOISTS (in mm) ¹Chain buckets increase the hoist headroom.
JDN Hydraulic Hoists Dimensions

Model3 TI-H6 TI-H10 TI-H16 TI-H20 TI-H
A (smallest headroom_)5936748138981030
B373454548598670
C233233308382382
D578578670787787
E14040445375
E23040445375
F187154197199180

Dimensions: HYDRAULIC MONORAIL HOISTS (in mm) ¹Chain buckets increase the hoist headroom.
Dimensions: HYDRAULIC MONORAIL HOISTS (in mm)

ModelEH 20-HEH 25-HEH 37-HEH 50-HEH 75-HEH 100-H
A130146146125100125
B687070686868
C267257267272267272
D352525403540
E220198220283220283
F18209981070115014801535
G200170190420286575
H7575100100120120
J266350455340740470
K60011851730168032103130
L367377377462640762
M420562562687670765
