JDN Low Headroom Trolley – Lifting Equipment

Download PDF Information Sheet

Enquire: 08 8268 1300

Description

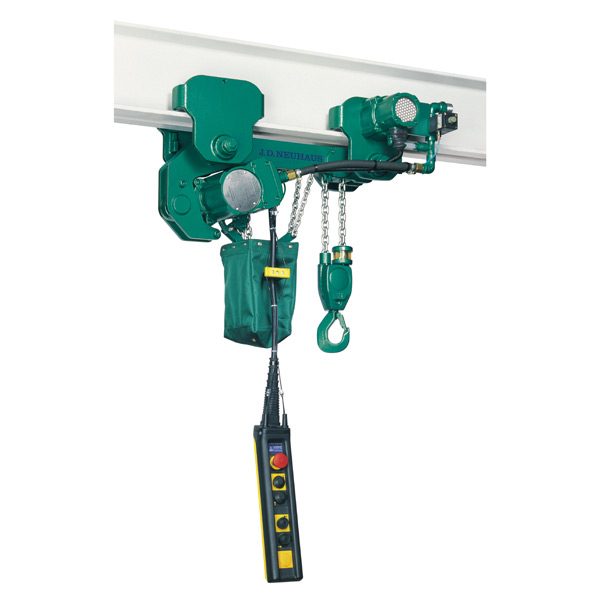

The JDN Low Headroom Trolleys are the solution where headroom is restricted and standard trolleys are unable to meet the lifting height requirements. This, together with having the JDN Air Hoist mounted in a horizontal position, could just be the answer in a difficult lifting situation. The carrying capacity of these models vary from 0.5 tonne up to 6.3 tonne, with an air pressure of 6 bar.

PRODUCT FEATURES

  • Manufactured in Germany, under strict quality control with demanding tolerances.
  • All JDN models are manufactured to comply with AS1418.2.
  • Small number of maintenance / wear-free moving parts.
  • No additional motor lubrication required.
  • Two-step travelling speed.
  • Adjustable trolley widths to suit your requirements.
  • Able to negotiate curves.
  • Extended trolley tie bars for bulky elongated loads.
  • Optional Rack and pinion drive, off shore paint and spark resistant packages available.
  • Various options for Air supply systems available.



SPECIFICATIONS & DIMENSIONS

Specifications: JDN Low Headroom Trolleys

Hoists & Trolley ModelPROFI 0.5Ti & LMF 05 - 2tPROFI 1Ti PROFI 2Ti PROFI 3TiPROFI 6Ti
& LMF 05 - 2t& LMF 05 - 2t& LMF 3.2t& LMF 6.3t
Stock CodeJDN706JDN715JDN725JDN735JDN765
Rated Capacity (tonne)0.5123.26.3
No. of chain strands11212
Motor Output ? Hoist (kW)1113.53.5
Motor Output ? Trolley (kW)0.20.20.20.20.2
Air Pressure (bar)66666
Lifting speed at full load (m/min)1052.54.52.2
Lowering speed at full load (m/min)17115.510.85.4
Travelling speed at full load (m/min)14-Sep14-Sep14-Sep14-Sep14-Sep
Air consumption at full load (m³/min)1.21.21.21.21.2
Air Connection
Hose Dimension (mm)1313131919
Weight with standard lift & control (kg)9899105210330
Chain Dimension (mm)7 x 217 x 217 x 2113 x 3613 x 36
Weight of chain (kg)1113.83.8
Standard Lift (m)33333
Max. bottom flange ? thickness (mm)2525253535
Max. bottom flange ? width (mm)310310310310310
Min. bottom flange ? width (mm)808080125125
Noise level at full load lifting (dB (A))7576767878

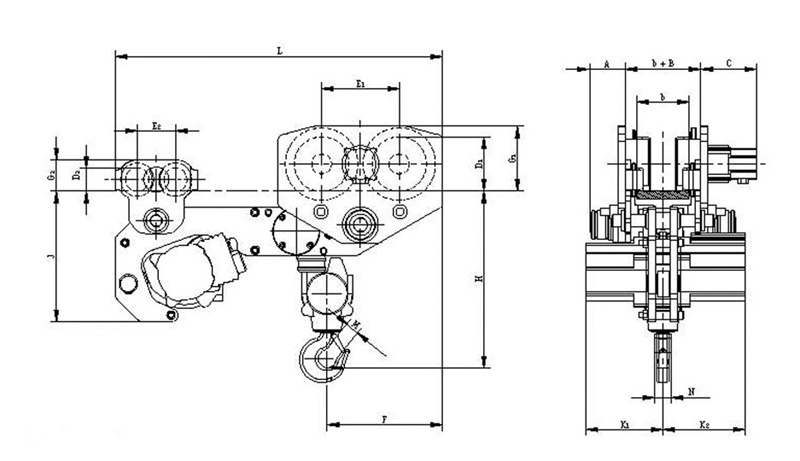

Dimensions: JDN LOW HEADROOM TROLLEYS (in mm)





Hoists & Trolley ModelPROFI 0.5Ti & LMF 05 - 2tPROFI 1Ti PROFI 2Ti PROFI 3TiPROFI 6Ti
& LMF 05 - 2t& LMF 05 - 2t& LMF 3.2t& LMF 6.3t
A max.105105105105106
B3636363670
b min.80808080125
C164164164164169
D170707070165
D27070707070
E1116116116116236
E2116116116116116
F172172195228351
G195959595197
G29595959595
H min.320320394415537
J320320320397397
K1145145145233233
K2152152152248248
L715715715825995
M2828283040
N4242424251
