Leverhoists Challenger

Description

The extensive range of Challenger Lever Blocks feature superior quality at an affordable price. They are suitable for applications in the mining, construction, transport and automotive industry. The Challenger Lever Block uses the latest technology to ensure a higher quality design, operator safety and longer service life.

PRODUCT FEATURES

  • All Challenger models are manufactured to comply with AS1418.2.
  • “T” type hooks for improved load holding integrity (except for the 250kg capacity).
  • New design double pawl safety springs to eliminate sticking.
  • New style cast hand wheel for added strength and durability.
  • Encapsulated needle bearings and side plate bearings for smoother operation.
  • Key internal components are CNC machined before being heat-treated and toughened.
  • No aluminum content which ensures suitability for mining applications.
  • Overall better design and improved finish to prolong life expectancy.

SPECIFICATIONS & DIMENSIONS

Specifications: CHALLENGER LEVER BLOCK

CAPACITY250 KG500 KG800 KG1.6 TONNE3.2 TONNE6.3 TONNE
Stock CodeCLB102CLB105CLB108CLB116CLB132CLB163
Lift Height (m)1.5
Test load (kg)3757501200240048009450
Effort to lift full load (N)115248285315360370
No. of falls12
Load chain (mm x mm)¯4 x 12¯5 x 15¯5.6 x 17¯7.1 x 21¯10 x 28¯10 x 28
Length of lever handle (D) (mm)168253273378418418
Net weight for 1.5m lift2.43.77102031

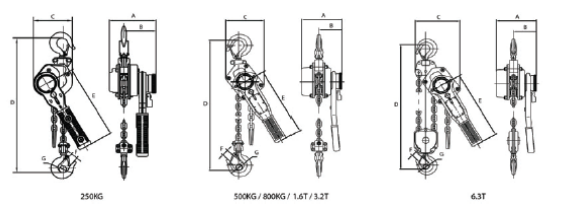

CAPACITY250 KG500 KG800 KG1.6 TONNE3.2 TONNE6.3 TONNE
A100143147173200200
B70858799112112
C86118132145198230
D235310340400520640
E168253273378418418
F202226293743
G¯18¯20¯25¯30¯36¯43
