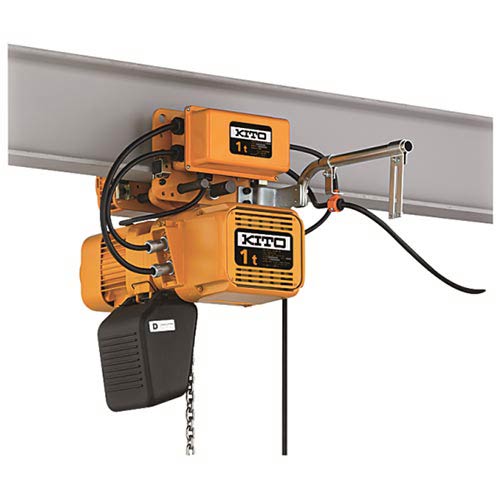

MR2 Motorised Trolley

Capacity: 1 – 5 tonne

Description

  • Bearings built in side rollers provide smooth running through the minimum radius curve and excellent traversing performance and assist with derailment prevention.
  • Simple gear box construction.
  • Improved balance due to a lighter weight geared motor.
  • Semi tapered flange wheels – allows use on most monorail beams.
  • Speed variations; single low speed, single standard speed and dual speed – high and low.
  • Motor has a pull rotor brake for accurate and safe stopping.
  • 10 metre power supply cable as standard.
  • 10m/min traverse speed available on request.
  • Applications: Mining, construction, engineering, entertainment.
  • Australian Standard: AS 1418.2
Part No.ModelCapacityTraverse SpeedBeam RangeMin Radius
(kg)M/Min(mm)(Mtr)
Single speed standard flange width
45901MR2-010S10002058 - 153 Flg0.8
45902MR2-020S20002082 - 178 Flg0.8
45903MR2-030S30002082 - 178 Flg1
45904MR2-050S500020100 - 178 Flg1.8
Dual speed standard flange width
45921MR2-01IS100024-Apr58 - 153 Flg0.8
45922MR2-02IS200024-Apr82 - 178 Flg0.8
45924MR2-03IS300024-Apr82 - 178 Flg1
45925MR2-05IS500024-Apr100 - 178 Flg1.8
Single speed wide flange
45911MR2-010SW100020154 - 305 Flg0.8
45912MR2-020SW200020179 - 305 Flg0.8
45913MR2-030SW300020179 - 305 Flg1
45914MR2-050SW500020179 - 305 Flg1.8
Dual speed wide flange
45931MR2-010ISW100024-Apr154 - 305 Flg0.8
45932MR2-020ISW200024-Apr179 - 305 Flg0.8
45933MR2-030ISW300024-Apr179 - 305 Flg1
45935MR2-050ISW500024-Apr179 - 305 Flg1.8
