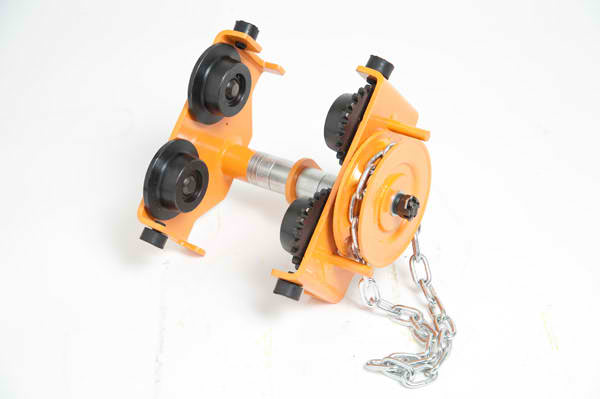

Pacific Girder Trolleys

Download PDF Information Sheet

Enquire: 08 8268 1300

Description

Pacific Girder Trolleys feature high quality construction for an economical price. They are available in either a push or geared variety and comply with all relevant Australian Standards.



PRODUCT FEATURES

  • All Pacific girder trolleys are manufactured to comply with AS1418.2.
  • Fully adjustable to suit various beam widths.
  • Fitted with anti-drop plates for improved safety and compliance.
  • High-grade, fully sealed bearings for maintenance free extended life.
  • Available with either push or hand geared travel.



SPECIFICATIONS & DIMENSIONS

Specifications for PACIFIC GIRDER TROLLEYS PUSH

MODELPPT305PPT310PPT320PPT330PPT350PPT360
Stock CodePPT305PPT310PPT320PPT330PPT350PPT360
Rated Capacity (kg)500100020003000500010000
Pin ConfigurationSingleSingleSingleSingleSingleTwin
Min. radius of curve (m)0.811.11.31.42
Net Weight (kg)6.510.517.5274186



Specifications for PACIFIC GIRDER TROLLEYS GEARED

MODELPGT305PGT310PGT320PGT330PGT350PGT360
Stock CodePGT305PGT310PGT320PGT330PGT350PGT360
Rated Capacity (kg)500100020003000500010000
Pin ConfigurationSingleSingleSingleSingleSingleTwin
Min. radius of curve (m)0.811.11.31.42
Net Weight (kg)10.514.521.5314691

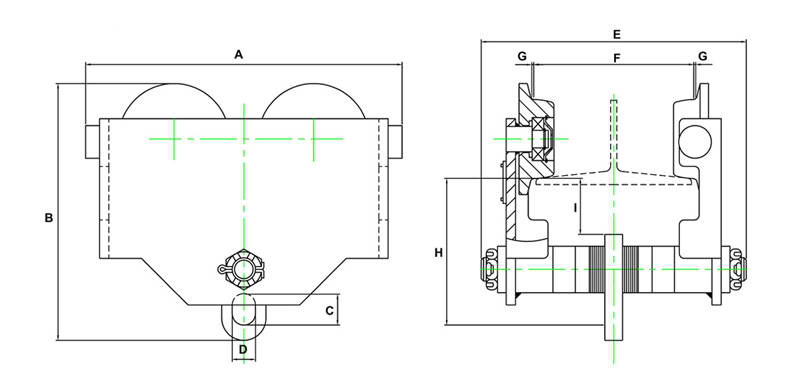

Dimensions: PACIFIC GIRDER TROLLEYS PUSH (in mm)

MODELPGT305PGT310PGT320PGT330PGT350PGT360
Stock CodePGT305PGT310PGT320PGT330PGT350PGT360
Rated Capacity (kg)500100020003000500010000
Pin ConfigurationSingleSingleSingleSingleSingleTwin
Min. radius of curve (m)0.811.11.31.42
Net Weight (kg)10.514.521.5314691

MODELPGT305PGT310PGT320PGT330PGT350PGT360
A223270300356405485
B188224261308354395
C3240526275110
D243038405070
E273341349362374501
F50 - 15264 - 20388 - 203100 - 203114 ? 203124 ? 305
G1.5 - 31.5 - 31.5 - 31.5 - 31.5 - 31.5 - 3
H105126.5146169197188
I313836404240
