Pacific My-T-Lift – Lifting Equipment

Description

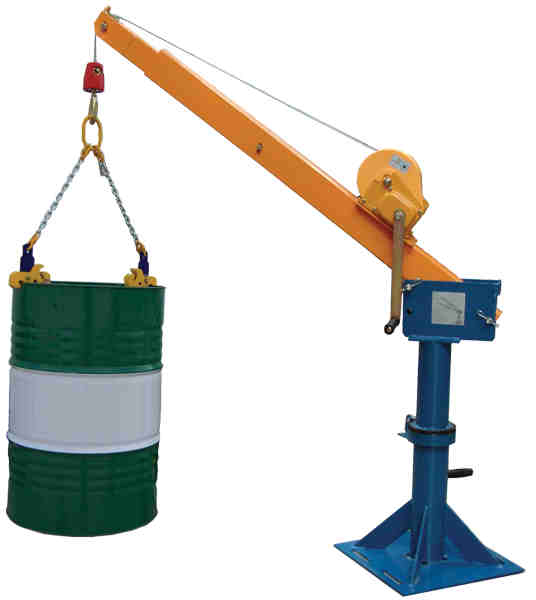

The Pacific My-T-Lift is the perfect solution for the safe handling of heavy loads, up to 300kg. This 360° telescopic jib crane is designed for single handed operation and can be mounted on trucks, trailers, pontoons and similar structures. It has the option of a manual winch which includes a 6 meters rope or a 12 or 24 volt electric winch, featuring a rope length of 12 meters.

Due to its design, the My-T-Lift has the capability to allow accurate placement of heavy loads, even in confined space.

This product is made from high quality durable steel and has the option to fold down when not in use.

PRODUCT FEATURES

  • 360° manual radial slew; with slipper bearing thrust race for ease of slewing motion
  • Rugged structure with low maintenance powder coated finish
  • Folds down when not in use.
  • Allows accurate placement of heavy loads, even in confined space.
  • Available with manual winch, 12 or 24 volt electric winch
  • Optional drum lifting sling available.



SPECIFICATIONS & DIMENSIONS

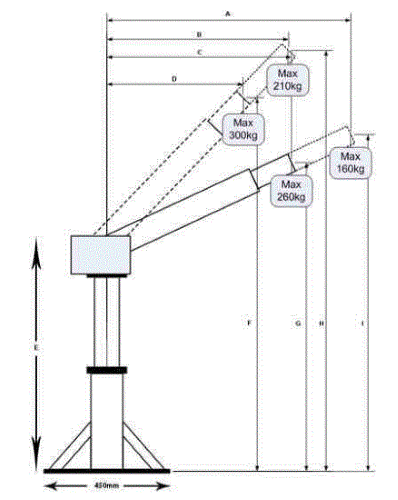

Dimensions: PACIFIC MY-T-LIFT (in mm)



MODELMYT300
A1790
B1490
C1290
D1110
E920
F1730
G1330
H2030
I1510

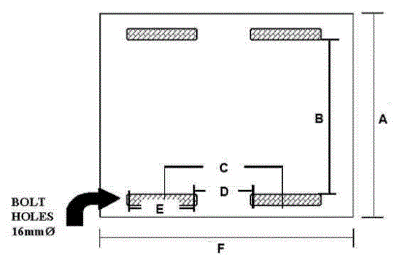

Dimensions: PACIFIC MY-T-LIFT BASE PLATE (in mm)



MODELMYT300
A455
B379
C195
D70
E123
F450

Specifications: PACIFIC MY-T-LIFT



MODELMYT300BMYT300MMYT300EMYT300F
Stock CodeMYT300MYT318MYT312MYT324
Rated Capacity (kg)300300300300
Rope Length (m)Nil61212
Winch TypeNilManual brake12V DC24V DC
Net Weight (kg)68788383
