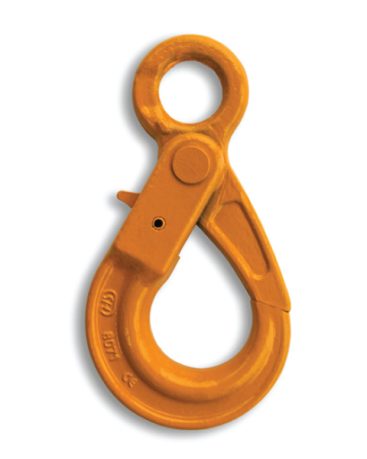

SELF LOCKING HOOK – EYE
Eye Self-Locking Hooks remain open until the load is engaged and automatically lock under load, preventing accidental opening. The hook can only be released by pressing the trigger. The eye design allows easy connection to chain connectors, shackles, and wire rope slings.
- Description
Description
Features
- Marked with chain size, product ID, grade with manufacturer quality mark
- Manufactured from G80 alloy steel with a safety factor of 4 to 1
- Test Certificates available upon request
- Conforms to AS3776
- Spare Trigger Kits are available
Specifications

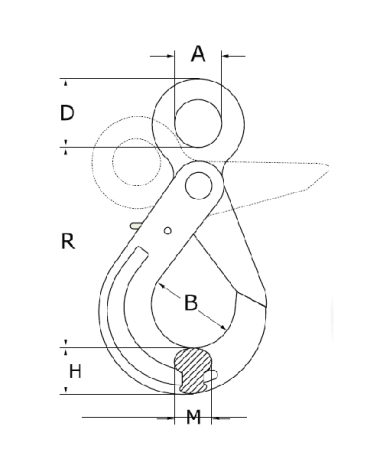

| SIZE (mm) | WLL (tonne) | WEIGHT (kg) | A (mm) | B (mm) | D (mm) | R (mm) | H (mm) | M (mm) |
|---|---|---|---|---|---|---|---|---|
| 6 | 1.1 | 0.5 | 22 | 34 | 10.5 | 110.5 | 20 | 15 |
| 7 - 8 | 2 | 0.8 | 25 | 46 | 12 | 136 | 24 | 20 |
| 10 | 3.2 | 1.5 | 32 | 58 | 13 | 169 | 28 | 26 |
| 13 | 5.3 | 2.8 | 40 | 69 | 16.5 | 208 | 40.5 | 32.5 |
| 16 | 8 | 5.4 | 50 | 86 | 20 | 254.5 | 50.5 | 41 |
| 18 - 20 | 12.5 | 10 | 61 | 92 | 26.5 | 290 | 62 | 50 |
| 22 | 15 | 13.4 | 72 | 98 | 30 | 320 | 65 | 52 |
| 26 | 21.2 | 18.5 | 80 | 110 | 34.3 | 362 | 75 | 60 |
| 32 | 31.5 | 44.5 | 105 | 166 | 45 | 472 | 97 | 79.5 |
Subject to change without notice
