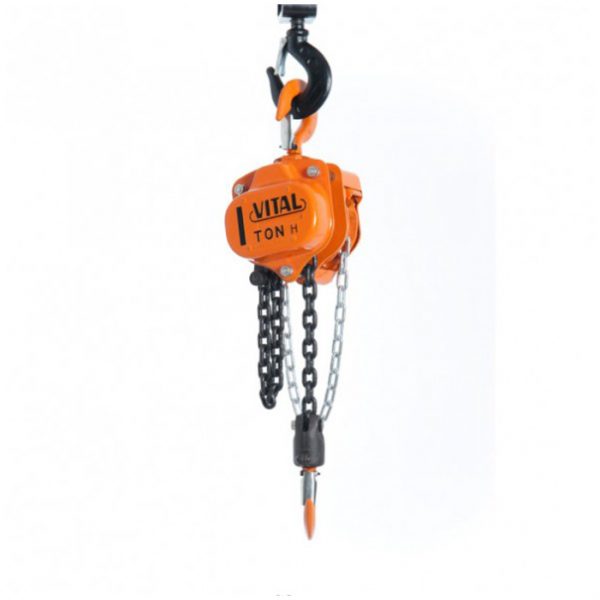

Vital Chain Blocks

Description

Vital is a Japanese brand which is globally recognised for their high quality products. Their range of chain blocks are suited for many applications in the mining, construction, industrial and automotive industry. They have proven to be an economical method to lift heavy loads with ease. The capacities vary from 0.5 tonne to 20 tonne and all chain blocks can be supplied with overload protection for added security of use.

PRODUCT FEATURES

  • Manufactured in Japan using optimum high quality steel which conforms to the strict JIS & ISO regulations.
  • All Vital models are manufactured to comply with AS1418.2.
  • Designed for long-term use while providing the lowest possible per-use cost.
  • Can be supplied close coupled and extra close coupled to girder trolleys to alleviate headroom restrictions.
  • All Vital chain blocks can be supplied with overload protection.
  • Customised lift height are available upon request.
  • Quality caged needle bearings on load sheave and thrust bearings on bottom hook.
  • Hardened alloy steel load chain with embossed identification, marked as to the relevant standards.
  • Load chain exceeds Australian Standards with 5:1 Safety Factor.

SPECIFICATIONS & DIMENSIONS

Specifications: VITAL CHAIN BLOCKS *Vital chain blocks with customised lift heights are available.
MODEL05VH510VH515VH520VH530VH550VH575VH590VH592VH593VH5
Stock CodeVCB050VCB100VCB150VCB200VCB300VCB500VCB750VCB910VCB915VCB920
Net Weight (kg)8.611.513.821.6234160.578150190
Standard Lift Height (m)3333333333
Pull to lift load (kg)253334343539414141 x 241 x 2
Rated Capacity (tonne)0.511.52357.5101520

Dimensions: VITAL CHAIN BLOCKS (in mm)

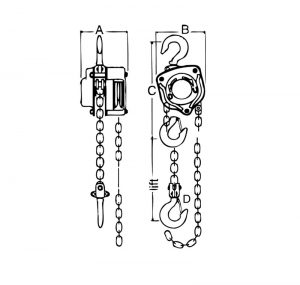

vital chain diagram

MODEL05VH510VH515VH520VH530VH550VH575VH590VH592VH593VH5
A127147147179147179179179207207
B144157174204206263345367745873
C305345370425505635740760850870
D27303437434767678787
